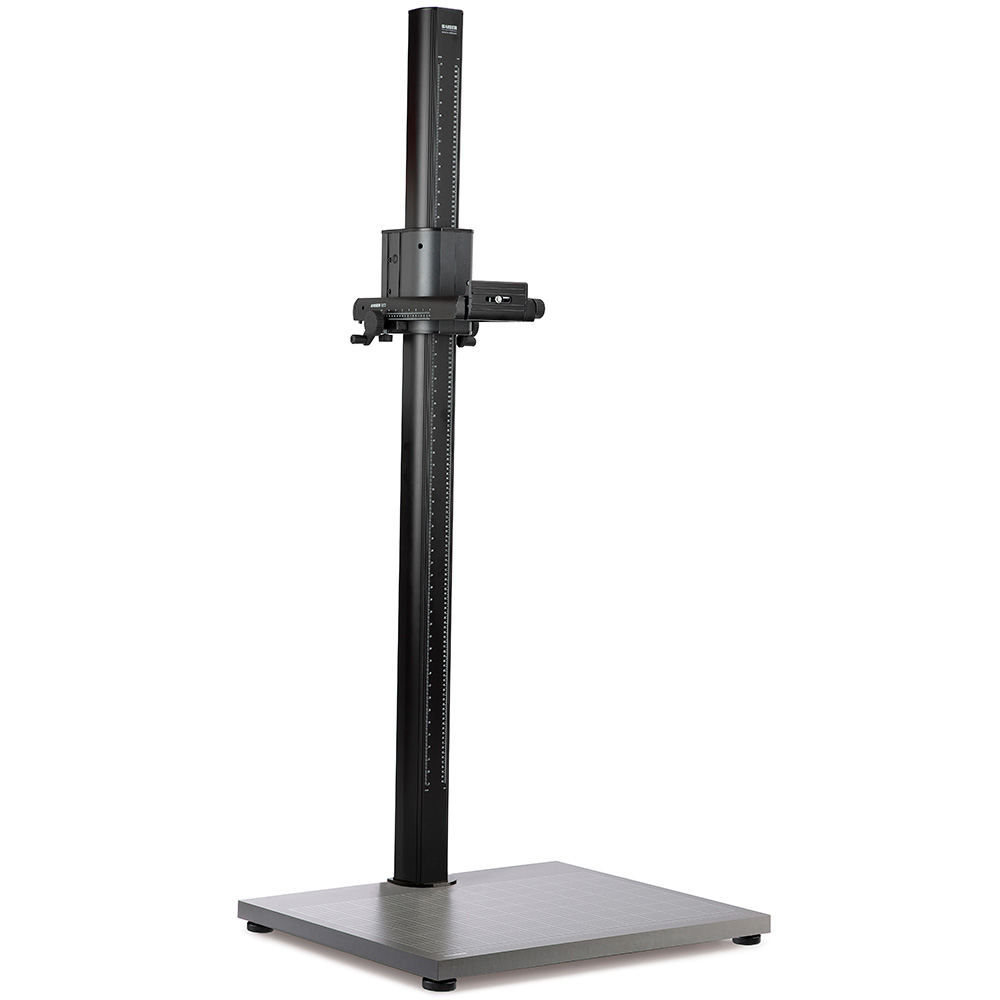

The column is made of special aluminium matt black anodized multi-section tubing, with cm and inch scales.

The camera carrier is made of aluminium section which can be horizontally adjusted over approx. 25 cm (9.8 in.) with rack-and-pinion parallel guides. Can be operated via left hand/right hand and has two blocking screws that prevent inadvertent changing of the adjusted position. The camera mounting plate is tiltable by ± 90°, with a connecting screw which is horizontally adjustable. Height adjustment motorised, with two speeds.

Large non-reflecting matt grey base plate with printed grid, cm and inch scales, with feet that are adjustable in height and an in-built spirit level.

Specifications:

• * Cable remote control.
• * Constant adjustment speed, independent of load.
• * Automatic end switch by magnet sensor
• * Base plate (WxHxD): 900 x 38 x 730 mm (35.4 x 1.5 x 28.7 in.)
• * Column height: 1.80 m (5.9 ft.)
• * Column cross section: 105 x 74 mm (4.1 x 2.9 in.)
• * Loading capacity: 8 kg (17.6 lbs.)
• * Camera mounting plate: 130 x 78 mm (5.1 x 3.1 in.)
• * Reversing mounting thread: 1/4” / 3/8” changeable

Example of Use: Digitization of Reflective Originals up to DIN A0
